Staff Answer
Aug 14, 2026 - 09:20 AM
The wiring for the Euri Lighting ESWP-120W1033CWS LED wall pack is as follows:
Black - Line
White - Common
Green - Ground
Purple - DIM+
Pink - DIM-

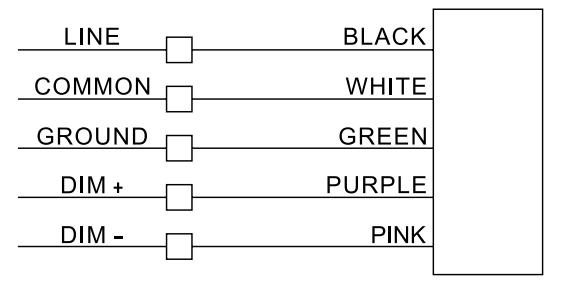

Dimming wires need to be rated for a 300V minimum, 0-10V dimming. The full diagram for the wall pack fixture is shown below:
Black - Line
White - Common
Green - Ground
Purple - DIM+
Pink - DIM-
Dimming wires need to be rated for a 300V minimum, 0-10V dimming. The full diagram for the wall pack fixture is shown below:
