Wiring Diagram or schematic for DECA Illuminated selector switch Part A20F-2E10Q4S Deca A20F-2E10Q4S 22 mm Maintained Selector Switch, 2 Position, Blue

Status: Open May 05, 2026 - 08:47 PM

Push Buttons & Switches

Do you have the same question? Follow this Question

1answer

Staff Answer

May 06, 2026 - 12:20 PM

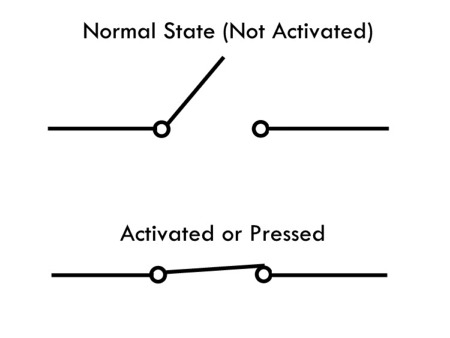

While there is not a wiring diagram for the Deca A20F-2E10Q4S selector switch available, the configuration is relatively simple with the attached contact block. The A20F-2E10Q4S has one normally open (NO) contact block. The operation is highlighted in the diagram shown below:
