Answer
Jan 12, 2026 - 09:02 AM

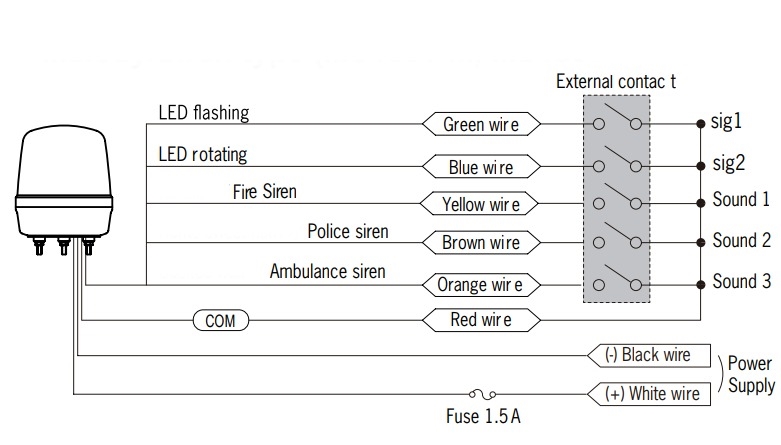

The wiring diagram below shows how the Menics MS135T-S00-R beacon light is wired as well as what color wires need to be connected to produce certain light patterns and sounds:
How is the Menics MS135T-S00-R beacon light wired? Menics MS135T-S00-R 135mm Beacon Light, 12-24V, Red, w/ Siren
Status:
Open Jan 12, 2026 - 09:00 AM
Do you have the same question? Follow this Question
1answer
View More Product Details
Menics MS135T-S00-R 135mm Beacon Light, 12-24V, Red, w/ Siren
Menics MS135T-S00-R 135mm beacon light is 12-24V DC with a red lens. Flashing & rotating LED with siren. Rotation rate & alarm volume are adjustable.
